3000MP INDUSTRIAL CMOS

Portable EL Tester

AI-Assisted EL Inspection for Micro-Crack Detection, Module Quality Verification and Field Diagnostics.

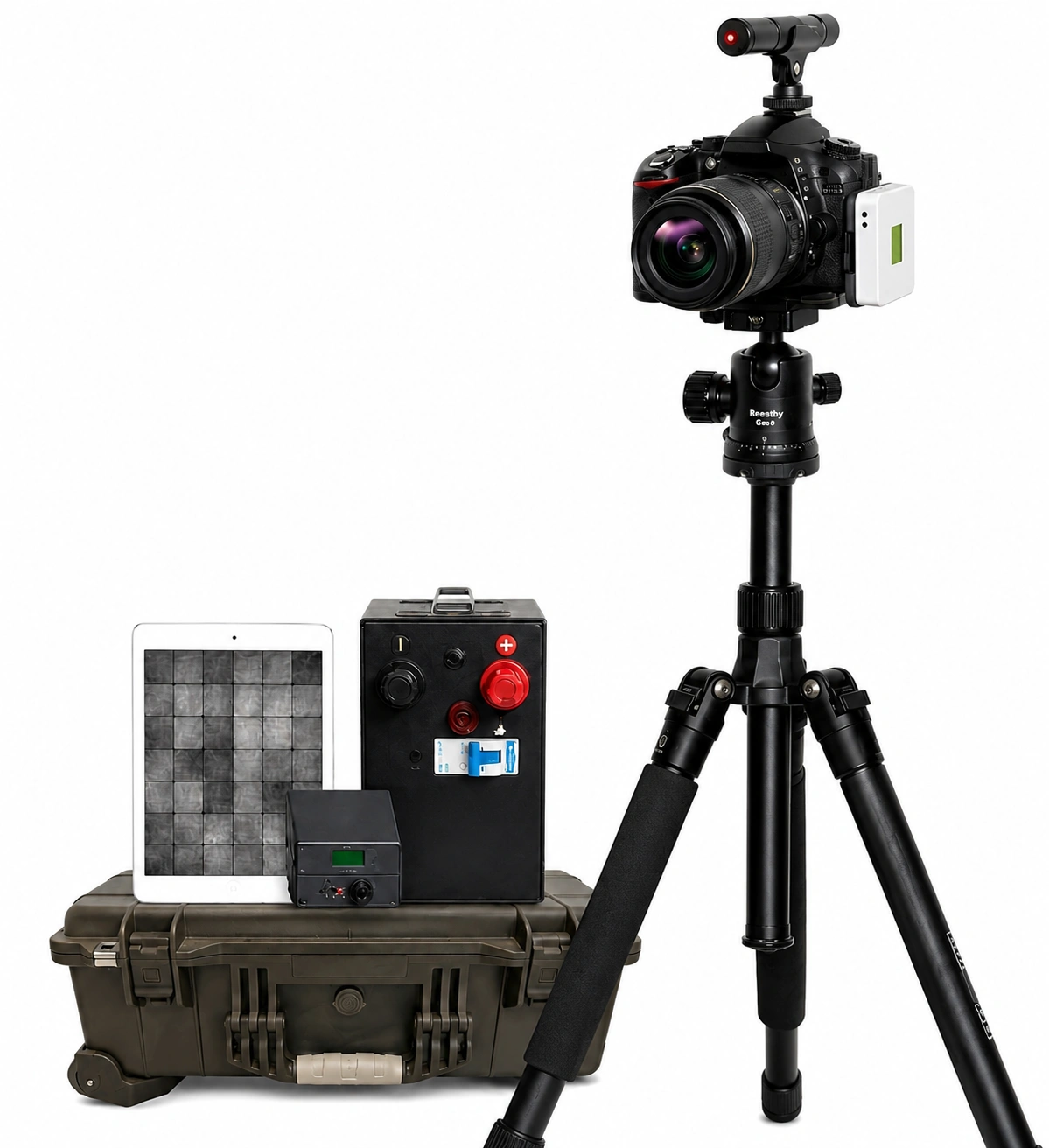

30MP Portable EL Tester

  • AI Defect Recognition

  • Wireless APP Control

  • Automatic Focus System

  • 150m Wireless Transmission

  • Day & Night Testing Capability

Get a Quote
defect
DESIGNED FOR FAST FIELD EL INSPECTION

Product Overview

Detect hidden defects inside photovoltaic modules using high-resolution electroluminescence imaging. The portable system combines industrial CMOS imaging, intelligent wireless control and AI-assisted software to simplify on-site inspections.

The 3000MP Portable EL Tester supports routine quality inspection before installation, field maintenance after installation and laboratory verification. Automatic focus, wireless image transmission and report generation improve inspection efficiency while reducing manual operation.

Key Features & Benefits

30MP Industrial CMOS

High-resolution infrared imaging for detailed photovoltaic module inspection.

AI Defect Recognition

Automatically detect and classify hidden module defects.

Wireless APP Control

Adjust camera settings and capture images remotely using tablets.

Automatic Focus

Fast and reliable autofocus even under low-light inspection conditions.

150m Wireless Transmission

Stable long-distance communication between camera and controller.

Day & Night Inspection

Suitable for daytime inspections with shading tents or nighttime inspections.

Typical Applications

Utility-Scale PV Plants

Routine EL inspection during plant operation and maintenance.

Incoming Module Inspection

Quality verification before installation or project acceptance.

Laboratory Verification

Module analysis combined with EL and electrical performance testing.

Detectable Defects

Identify common photovoltaic module defects with high-resolution EL imaging and AI-assisted analysis.

Micro crack
Micro Crack
Broken Finger
Broken Finger
Hot Spot
Black / Dark Spots
Regular Scratch
Regular Scratch
Irregular Scratch
Irregular Scratch
Edge Contamination
Edge Contamination

Technical Specifications

Compare different configurations to find the right solution for your inspection requirements.

Parameter
Entry

Standard

Advanced

Professional

Camera Resolution

16 MP

24 MP

26 MP

30 MP

Imaging Resolution

1.5 mm/pixel

1.0 mm/pixel

0.8 mm/pixel

0.5 mm/pixel

Infrared Lens

Standard

Enhanced

High Sensitivity

Industrial Grade

Automatic Focus

Manual

Auto

Auto

Auto

Detection Area

Single Module

1 module

1-2 modules

Multi-module Array

Typical Inspection Speed

Standard

Fast

Faster

High-speed

AI Defect Recognition

Optional

✓

✓

✓

AI Auto Annotation

—

Optional

✓

✓

Barcode Scanning

—

✓

✓

✓

Module Mapping

—

✓

✓

✓

Wireless APP Control

✓

✓

✓

✓

Wireless Transmission

—

150m

150m

150m

Image Storage

Internal

Internal + Tablet

Tablet + Cloud

Cloud + Batch Processing

Report Generation

Basic

Standard

AI Report

AI Report + Mapping

Recommended Application

Small Installations

EPC & O&M

Utility-Scale Plants

Inspection Service Providers
SUPPORT & INFORMATION

3000MP Portable EL Tester – FAQ

Find answers about EL inspection capability, software functions, testing conditions, and portable field applications.

The system detects a wide range of photovoltaic module defects, including micro-cracks, broken fingers, cell fractures, PID-related degradation, hot spots, low-efficiency cells, soldering defects, contamination, and other internal abnormalities visible through EL imaging.

Yes. The system supports both daytime and nighttime inspections. When used with an infrared shading tent, reliable EL images can be captured even under sunlight. At night, the camera can be used directly without additional shading equipment.

Yes. The optional inspection software supports AI-assisted defect recognition, automatic defect marking, image classification, and report generation, helping reduce manual analysis time and improve inspection efficiency.

The inspection software supports live image preview, wireless camera control, barcode scanning, project management, module identification, defect annotation, image storage, report export, and cloud-based data management for efficient field inspections.

Yes. The compact design, wireless communication, battery-powered operation, and lightweight tripod configuration make it ideal for field commissioning, PV plant maintenance, incoming module inspection, and quality verification.
