CONTINUOUS ONLINE IV CURVE MONITORING FOR PV MODULES
Online PV IV Curve Monitoring System
The Online PV IV Curve Monitoring System performs automatic I-V curve testing on photovoltaic modules under real operating conditions without interrupting power generation. It enables continuous performance monitoring, fault diagnosis, and comparative analysis for utility-scale solar plants.
Continuous Performance Monitoring Under Real Operating Conditions
The Online PV IV Curve Monitoring System is designed for long-term outdoor monitoring of photovoltaic module electrical performance.
The system automatically isolates individual PV modules during testing, performs rapid I-V curve measurements, and reconnects them immediately after the measurement process, allowing normal power generation to continue without interruption.
By integrating irradiance and temperature measurements, the system provides synchronized environmental and electrical data for comprehensive PV performance evaluation and long-term operational analysis.
Key Features
Online IV Curve Measurement
Performs automatic I-V testing under real operating conditions without affecting normal power generation.
Non-Interruptive Testing
The tested module is temporarily isolated during measurement and automatically reconnected after testing.
Flexible Network Expansion
Supports multiple testing modules connected through RS485 communication for synchronized monitoring.
Integrated Environmental Monitoring
Works with irradiance and temperature sensors for synchronized environmental data acquisition.
Monitoring Functions
Comprehensive analysis functions for online PV module performance monitoring and fault evaluation.
I-V Curve Analysis
Measures complete I-V characteristics of photovoltaic modules.
Fault Diagnosis
Identifies module degradation, mismatch, contamination, or electrical abnormalities.
Performance Evaluation
Calculates key electrical parameters including Voc, Isc, MPP and Fill Factor.
Comparative Analysis
Supports long-term performance comparison between different modules.
Applications
Designed for utility-scale photovoltaic systems, the online IV curve monitoring system enables continuous module performance analysis, fault detection, and operational evaluation under real working conditions.

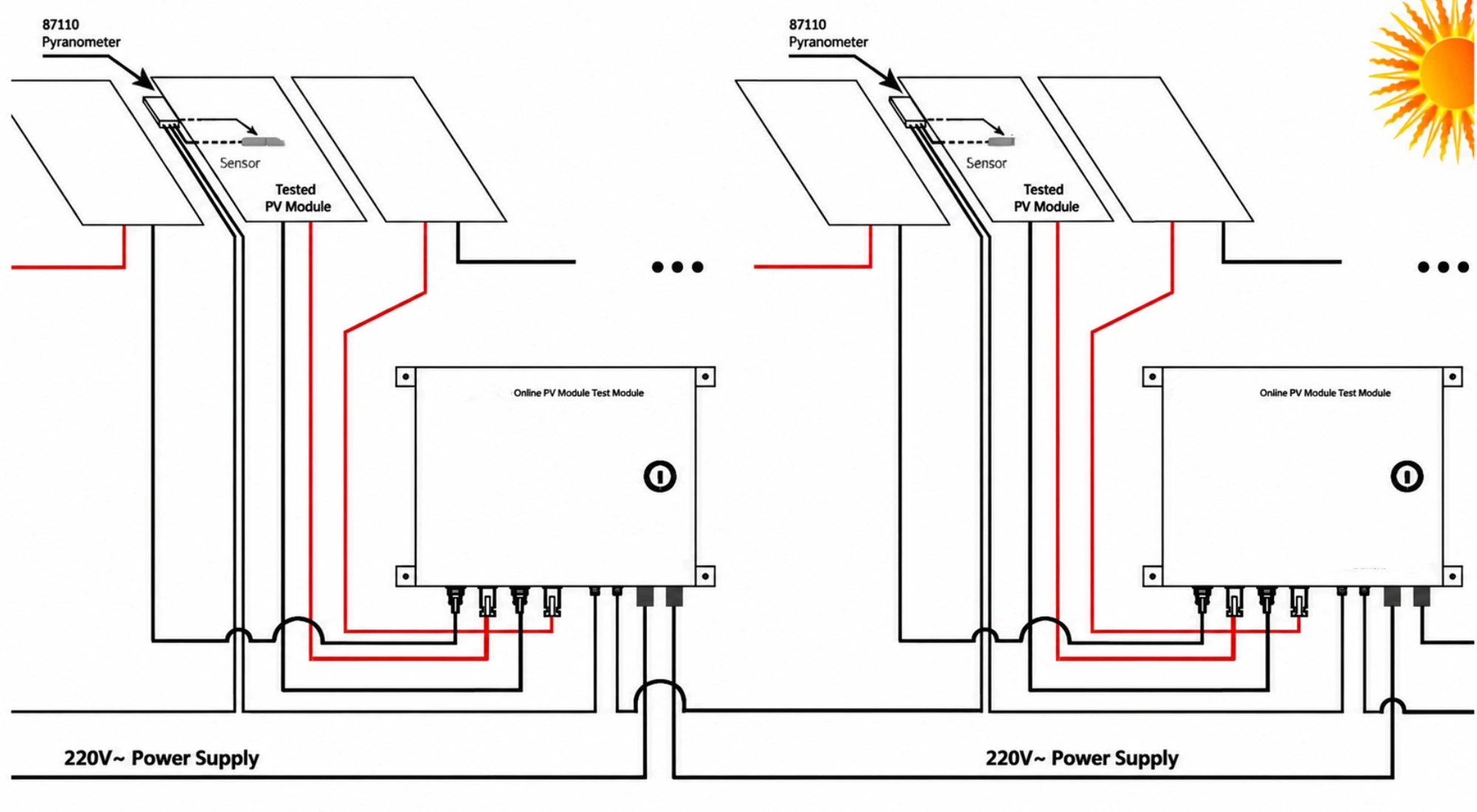

Standard PV String Monitoring
Continuous monitoring of photovoltaic modules connected in standard PV strings for performance comparison and abnormal condition detection.

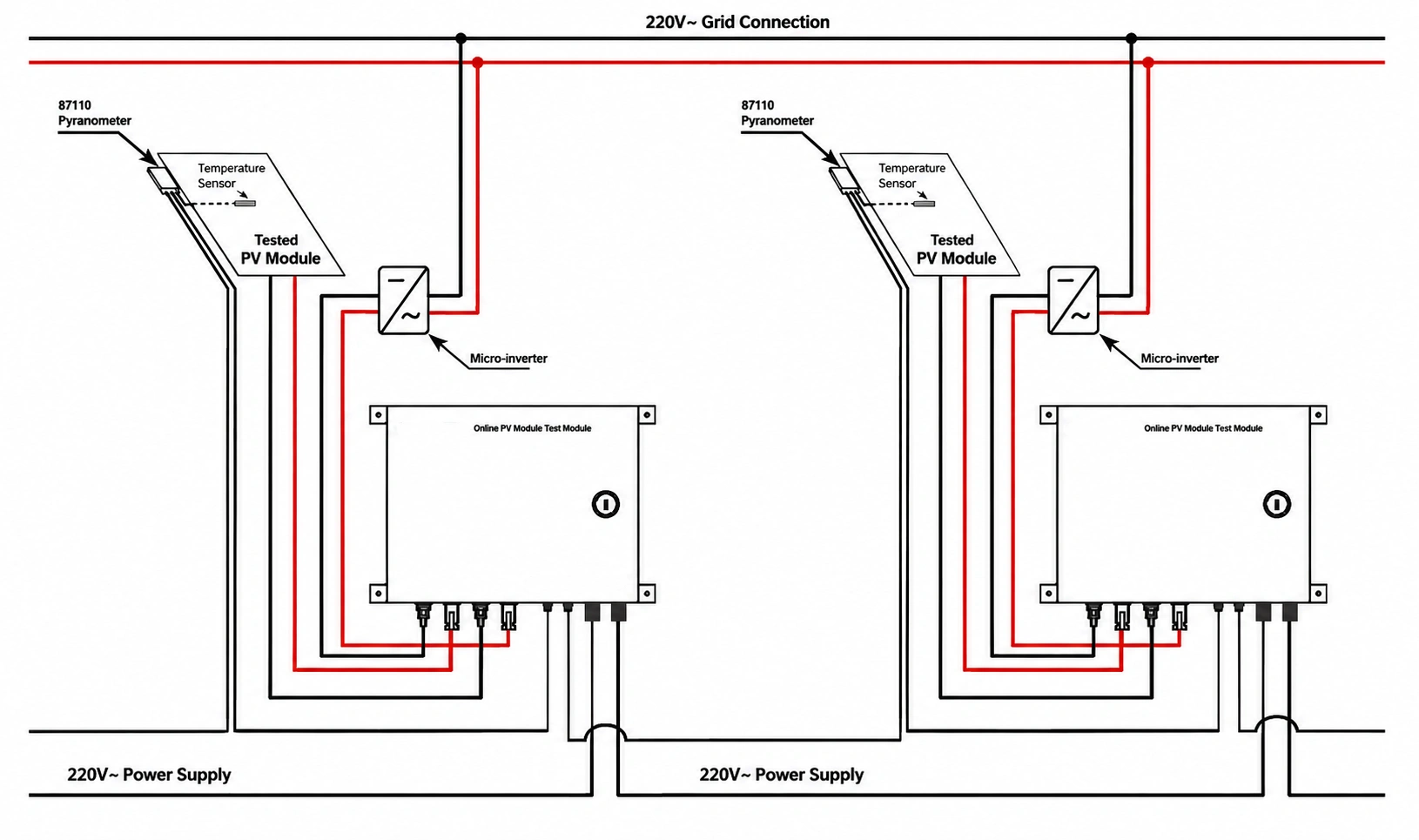

Micro-Inverter PV Systems
Supports PV modules connected with micro-inverters for individual module performance monitoring and evaluation.
Technical Specifications
Key specifications of online IV curve monitoring, module performance analysis, and environmental data synchronization functions.
Measurement Parameters
|
Parameter
|
Specification
|
|---|---|
|
Test Type |
Online I-V Curve Measurement |
|
Monitoring Mode |
Continuous Automatic Testing |
|
Communication |
RS485 |
|
Expansion |
Multi-Module Networking |
|
Environmental Sensors |
Irradiance & Temperature |
|
Installation |
Outdoor Module Mounting |
|
Protection |
Waterproof & Dustproof |
