Advanced Electrical Safety Testing for PV Systems

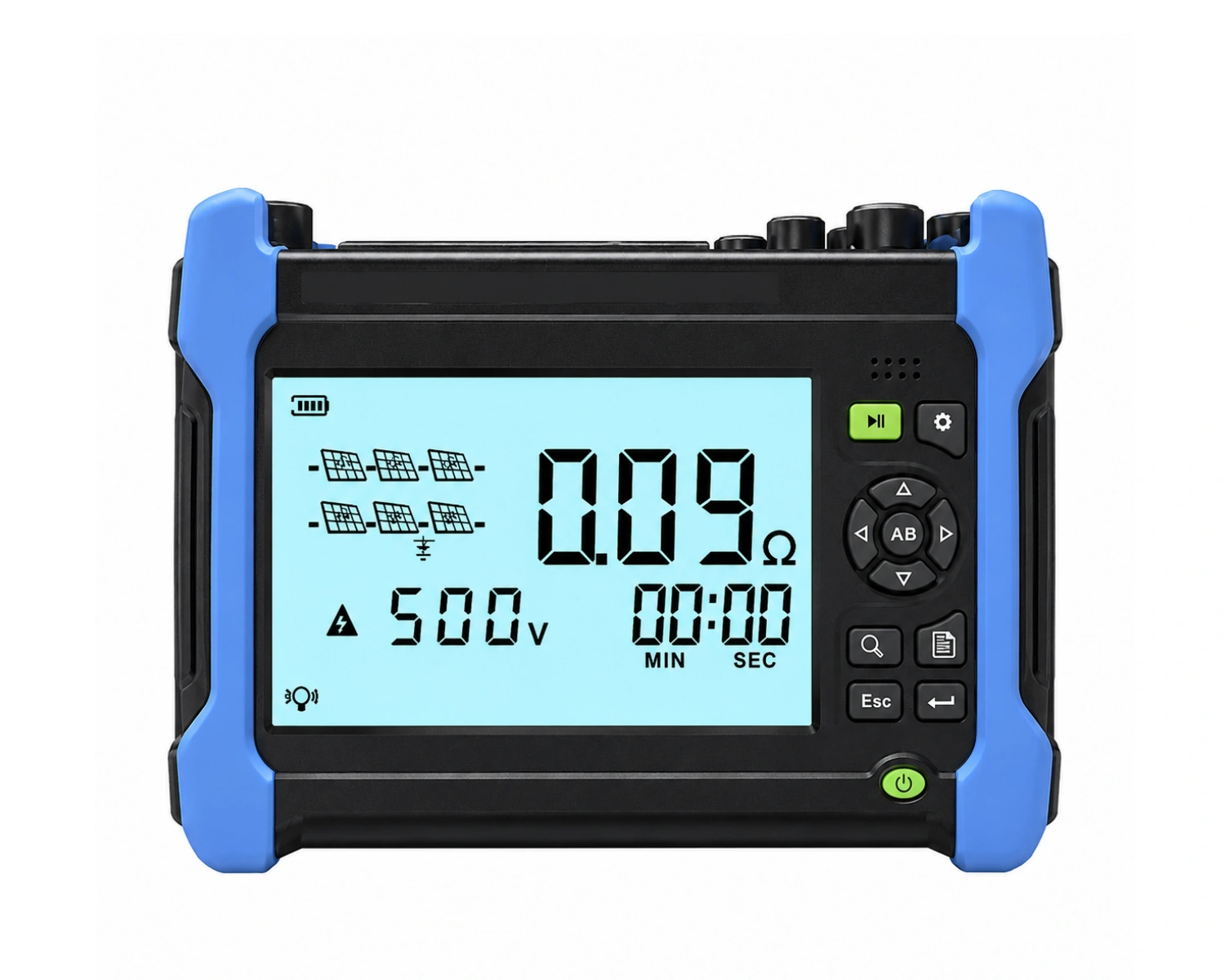

Solar PV Insulation Resistance Tester

Designed for PV electrical safety inspection, this tester measures insulation resistance, polarity and grounding continuity, with insulation fault localization for photovoltaic systems up to 1500V DC.

Solar PV Insulation Resistance Tester

  • Insulation Resistance Testing

  • Up To 1500V DC Safety Testing

  • Insulation Fault Localization

  • Ground Continuity Testing

  • PI / DAR Analysis

Request A Quote
PROFESSIONAL PV ELECTRICAL SAFETY TESTING

Comprehensive Electrical Safety Testing for PV Systems

Solar photovoltaic systems are exposed to outdoor environments for long periods, where moisture, dust, temperature changes and component aging can gradually affect insulation performance.

This electrical safety tester integrates insulation resistance measurement, protective conductor continuity testing, polarity testing and insulation fault localization to support comprehensive PV system safety inspection.

By identifying potential insulation problems and electrical safety issues, the tester helps technicians perform commissioning, preventive maintenance and troubleshooting more efficiently.

Key Inspection Capabilities

✓ High-Voltage Insulation Measurement Measures insulation resistance with test voltage up to 1500V DC for photovoltaic systems.

✓ Insulation Fault Location
Helps identify potential insulation fault areas associated with cable damage, moisture or insulation degradation.

✓ Multiple Electrical Safety Tests
Supports voltage measurement, polarity testing, protective conductor continuity and insulation evaluation.

✓ Advanced Diagnostic Functions
Supports PI and DAR analysis for evaluating insulation condition.

Powerful Features For PV Electrical Safety Diagnostics

Designed to help engineers identify insulation risks, locate electrical faults, and maintain reliable solar PV systems.

Insulation Fault Localization

Quickly identifies possible insulation fault locations within PV systems, helping engineers troubleshoot damaged cables, water ingress, and abnormal insulation conditions.

1500V DC Insulation Testing

Supports high-voltage insulation resistance measurement for PV modules, strings, cables, and electrical equipment to detect leakage risks and insulation degradation.

200mA Protective Conductor Test

Verifies the continuity and reliability of protective grounding systems to ensure electrical safety under fault conditions.

Technical Specifications

Key specifications for insulation testing, electrical safety inspection, and PV system diagnostics.

Insulation Resistance Measurement

Parameter
Specification

Test Voltage

250V / 500V / 1000V / 1500V DC

Measurement Range

0.1–999MΩ

Test Mode

Dual / Timer

PI Measurement

Supported

DAR Measurement

Supported

Voltage Measurement

Parameter
Specification

DC Voltage Range

0–1500V

AC Voltage Range

0–1000V

Voltage Measurement

TRMS Supported

Fault Diagnosis

Parameter
Specification

Insulation Fault Location

Supported

GFL Mode

Supported

PV String Fault Detection

Supported

Ground Safety Testing

Parameter
Specification

Protective Conductor Test

200mA

Continuity Resistance Test

Supported
Ensure Safer And More Reliable PV Operations

PV Insulation Resistance Tester – FAQ

Detect insulation risks early and improve photovoltaic system safety with professional electrical testing solutions.

It measures insulation resistance, voltage, grounding continuity, polarity, and other electrical safety parameters of PV systems.

Regular insulation testing helps detect leakage risks, cable damage, and moisture-related failures before they affect system operation.

Yes. The insulation fault localization function helps engineers identify possible fault areas within PV strings and electrical circuits.

IV testing evaluates PV performance, while insulation testing focuses on electrical safety and leakage prevention.

Yes. It supports insulation testing up to 1500V DC, suitable for modern high-voltage PV installations.
