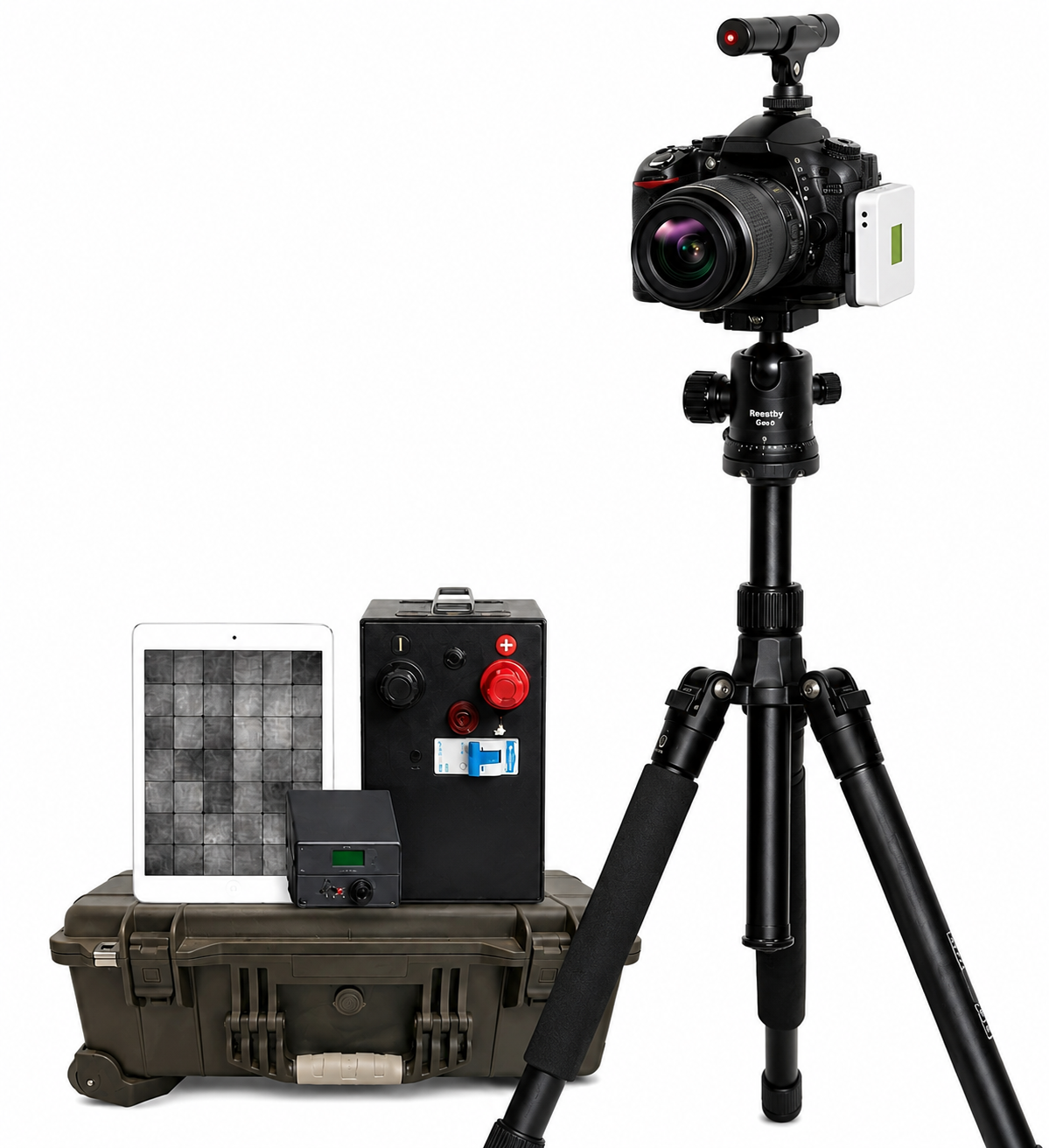

5000MP CMOS
String EL Inspection System
High-Resolution EL Imaging for Multi-Module Inspection, AI Defect Analysis and Utility-Scale PV Plant Diagnostics.
Product Overview
With high-resolution scientific CMOS imaging, programmable string power supply, and AI-assisted inspection software, the system significantly improves inspection speed and accuracy for utility-scale PV plants, rooftop systems, and large commercial installations.
Key Features & Benefits
Multi-Module EL Imaging
Capture up to 24 photovoltaic modules in a single inspection.
5000MP Scientific CMOS
High-resolution imaging for precise defect visualization.
Programmable String Power Supply
Simultaneously energizes complete PV strings for efficient EL testing.
4K EL Video Scanning
Continuous high-definition EL image acquisition for large inspection areas.
Automatic Focus
Fast autofocus improves inspection efficiency in field conditions.
AI Defect Recognition
Automatically identifies and classifies common module defects.
Day & Night Inspection
Supports stable EL testing in daytime with shading equipment or during nighttime operation.
Wireless APP Control
Remote camera control and image acquisition via tablet or mobile devices.
Typical Applications
Utility-Scale PV Plants
Large-scale module inspection during commissioning and maintenance.
PV Plant Quality Inspection
Incoming module inspection and large-area quality verification.
Rooftop & Commercial Systems
Inspection of rooftop, industrial and commercial photovoltaic installations.

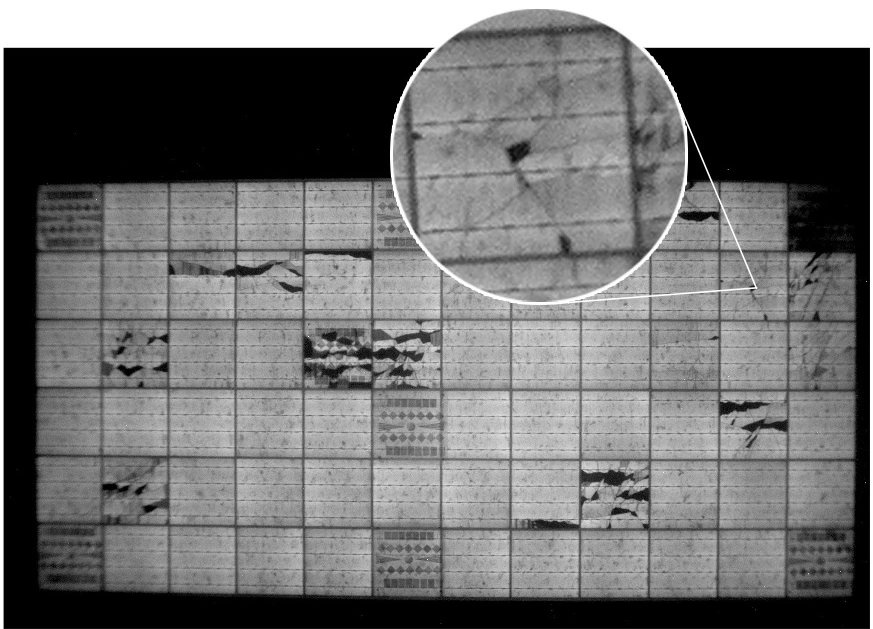

Detectable Defects
Identify internal photovoltaic module defects before they lead to performance degradation.

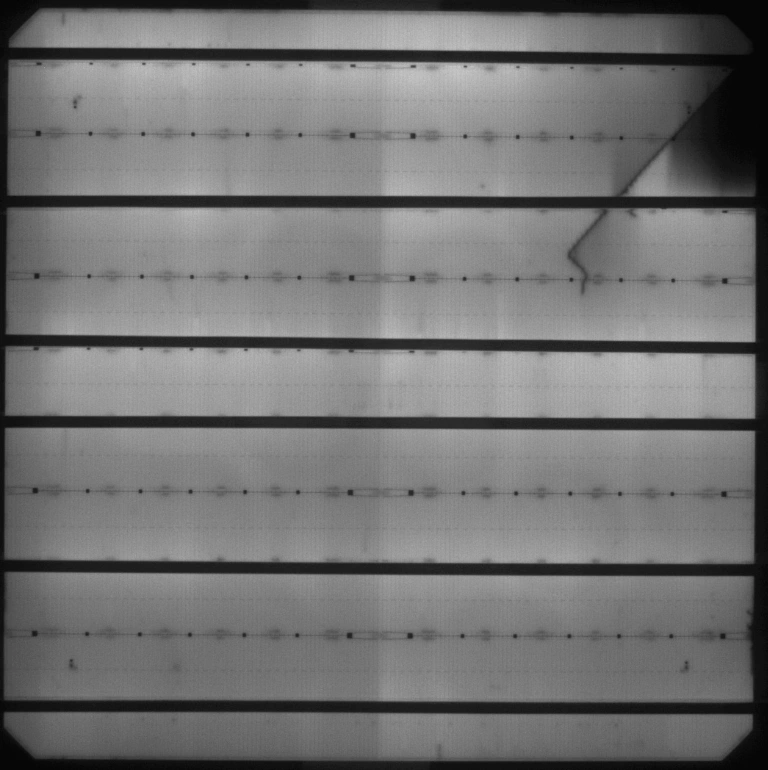

Micro Crack

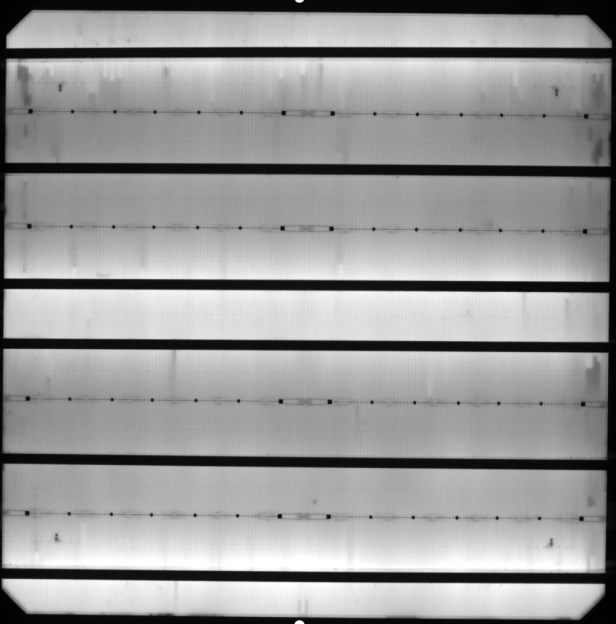

Broken Finger
Black / Dark Spots

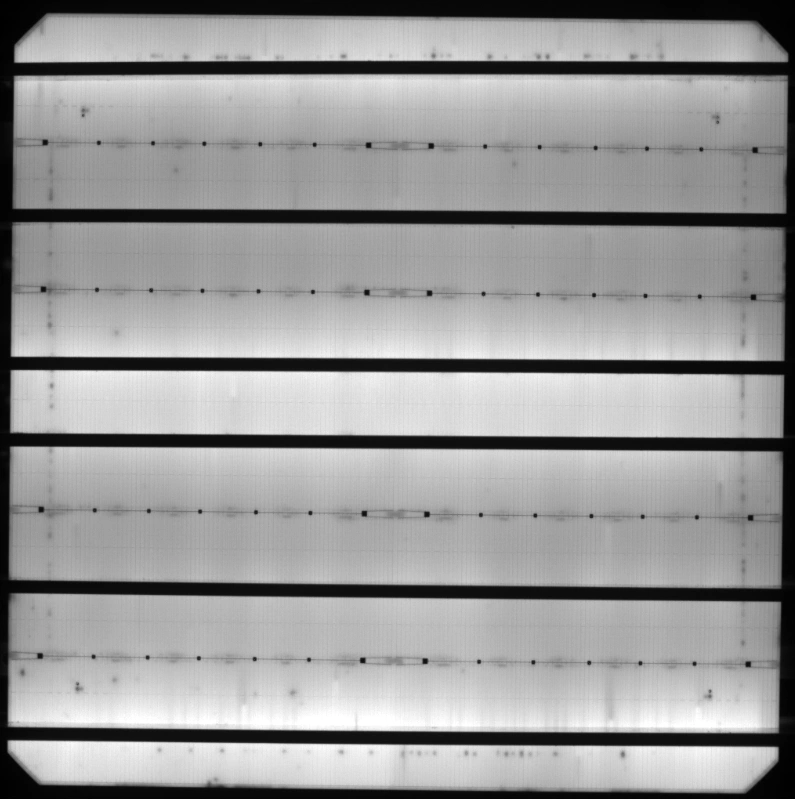

Regular Scratch

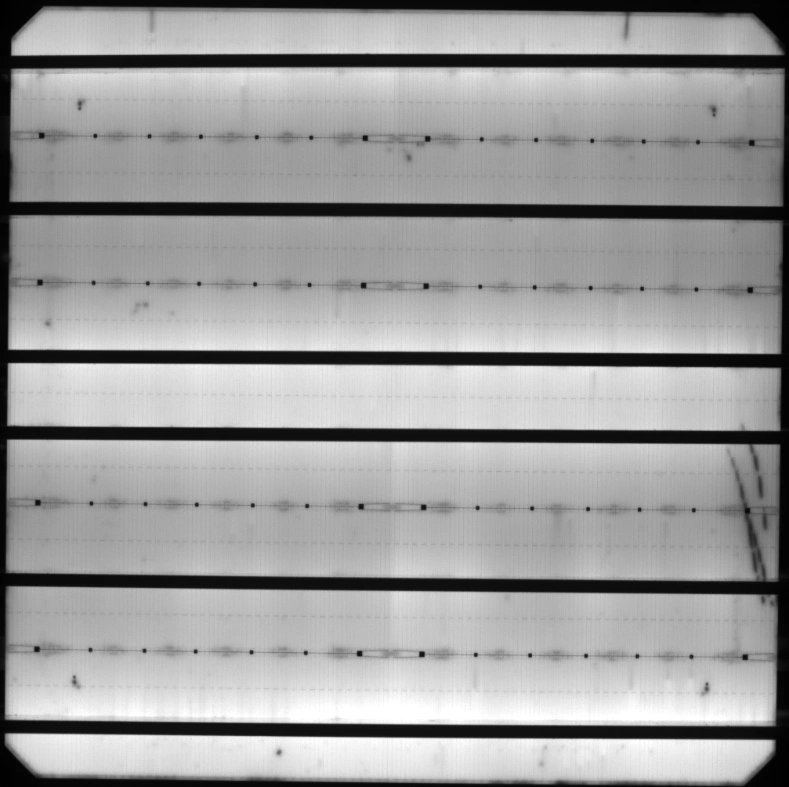

Irregular Scratch

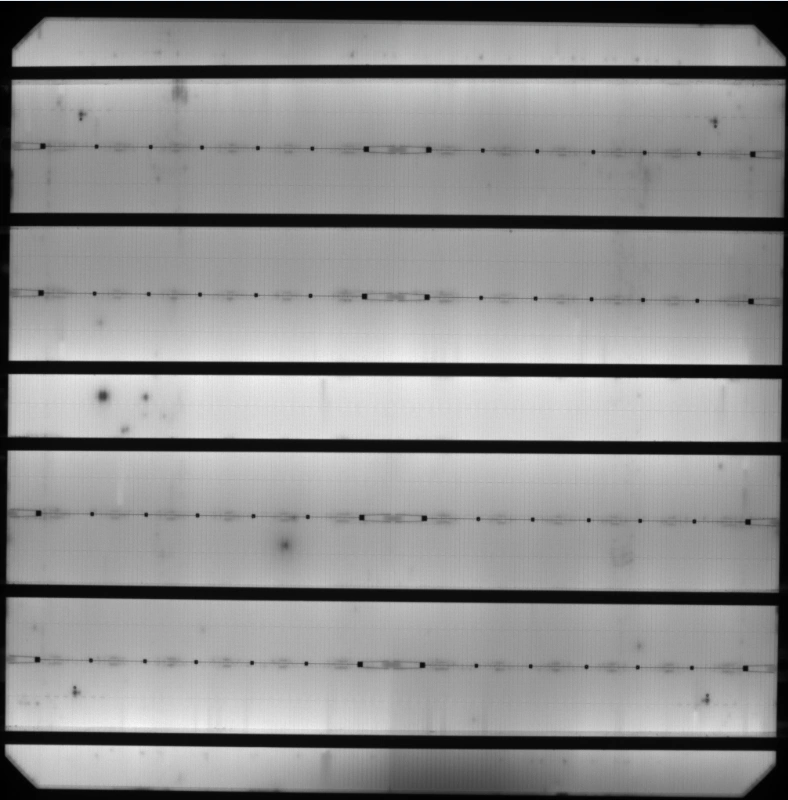

Edge Contamination
Model Comparison
Compare the available configurations and review the core performance specifications for utility-scale EL inspection applications.
|
Specification
|
Advanced Configuration
|
Standard Configuration |
|---|---|---|
|
Camera Resolution |
5000 MP Scientific CMOS |
3700 MP Scientific CMOS |
|
Imaging Resolution |
8200 × 5500 |
7300 × 4900 |
|
Image Accuracy |
0.1 mm/pixel |
0.25 mm/pixel |
|
Infrared Lens |
D30M |
D28M |
|
Simultaneous Imaging |
Up to 24 Modules |
Up to 12 Modules |
|
EL Video Scanning |
4K |
4K |
|
Wireless Transmission |
500 m |
150 m |
|
Image Transfer Speed |
50 MB/s |
8 MB/s |
|
String Power Supply |
15 kW |
7 kW |
|
AI Inspection Software |
Included |
Included |
|
Best Choice For |
Utility-scale PV plants, large EPC projects and high-throughput inspections |
Commercial PV systems, rooftop installations and routine maintenance |
General Specifications
|
Parameter
|
Specification
|
|---|---|
|
Inspection Method |
Electroluminescence (EL) Imaging |
|
Supported Module Types |
Mono, Poly, Bifacial, Thin Film, CIGS and other PV modules |
|
Detectable Defects |

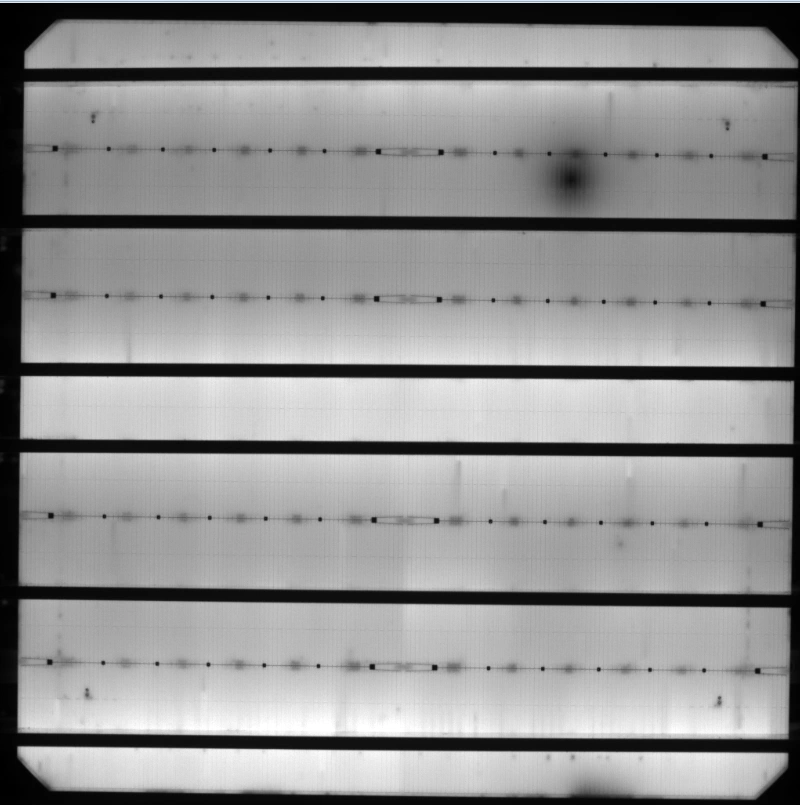

Micro-cracks, Broken Fingers, Cell Fractures, PID, Hot Spots, Soldering Defects, Low-Efficiency Cells, Contamination |
|
Focus System |
Automatic Continuous Focus |
|
Camera Control |
Wireless APP Control |
|
Image Storage |
APP Storage & Local Storage |
|
Image Export |
Automatic Report Generation |
|
Wireless Communication |
Wi-Fi |
|
Operating Modes |
Daytime (with shading tent) / Nighttime Inspection |
|
Mounting Platform |
Carbon Fiber Tripod with Electric Pan-Tilt |
|
Inspection Environment |
Utility-scale PV Plants, Rooftops, Ground-mounted Systems, Floating PV Plants |
|
Power Supply |
Programmable String Power Supply |
|
Software Functions |
AI Recognition, Barcode Scanning, Project Management, Report Export |
|
Operating Interface |
APP + Wireless Remote Control |
